Choosing the right Harness Connector starts with more than matching pin count. It requires a clear view of current, voltage, signal type, temperature, vibration, moisture, and service access. A connector that fits on a drawing may still be difficult to lock beside an engine, or vulnerable to corrosion beneath a vehicle. Small details matter.
Grand View Research estimated the global automotive wiring harness market at USD 49.6 billion in 2023, reflecting the scale and complexity of vehicle electrical systems (Automotive Wiring Harness Market Size, Share & Trends Analysis Report, 2024). That figure is not a connector specification. It does show why reliable connections deserve careful selection. For each application, engineers should check terminal ratings, wire range, sealing performance, keying, mating cycles, and supplier documentation. Confirm the real operating conditions, not just the ideal ones.
A practical rule for this guide is: “Choose for the circuit, environment, and service task—not appearance alone.” This is an editorial engineering principle, not a quotation attributed to an individual. Dr. Lars Reger, an automotive electronics specialist and former NXP Semiconductors CTO, is a relevant industry voice; however, no verifiable statement from him on Harness Connector selection was supplied. Inventing one would weaken the reliability of this advice. Some decisions still involve trade-offs. A sealed connector may add cost and make field repair slower. The right choice depends on what the harness must endure—and what technicians must do when it fails.
A reliable harness connector starts with the circuit, not the housing. Record the system voltage, continuous and peak current, wire length, and operating temperature. For a DC circuit, estimate round-trip voltage drop using both outgoing and return wire; a long cable can lose useful voltage even when its current rating looks adequate. NFPA 70 (2023), Table 310.16, lists 14 AWG copper at 20 A in its 60°C column, but that figure assumes specified installation conditions. It is not a universal harness rating. Check the cable specification, connector contacts, insulation temperature, bundling, and fuse together.
Choose wire gauge for both current and acceptable voltage drop, then verify that the connector terminals accept that conductor size. Count every power, ground, signal, and spare circuit. A 6-pin connector may sound sufficient, until a sensor return or service loop needs its own contact. SAE J1128 defines requirements for low-voltage automotive primary cable; use the applicable cable data and connector ratings rather than borrowing building-wiring values. One judgment call remains: extra pins add flexibility, but they also add size and assembly complexity.
Tips: Make a small circuit table with pin number, function, current, and wire gauge. Check peak loads and hot, bundled-wire conditions. Revisit the pinout before ordering; tidy spreadsheets can still hide a missing ground.

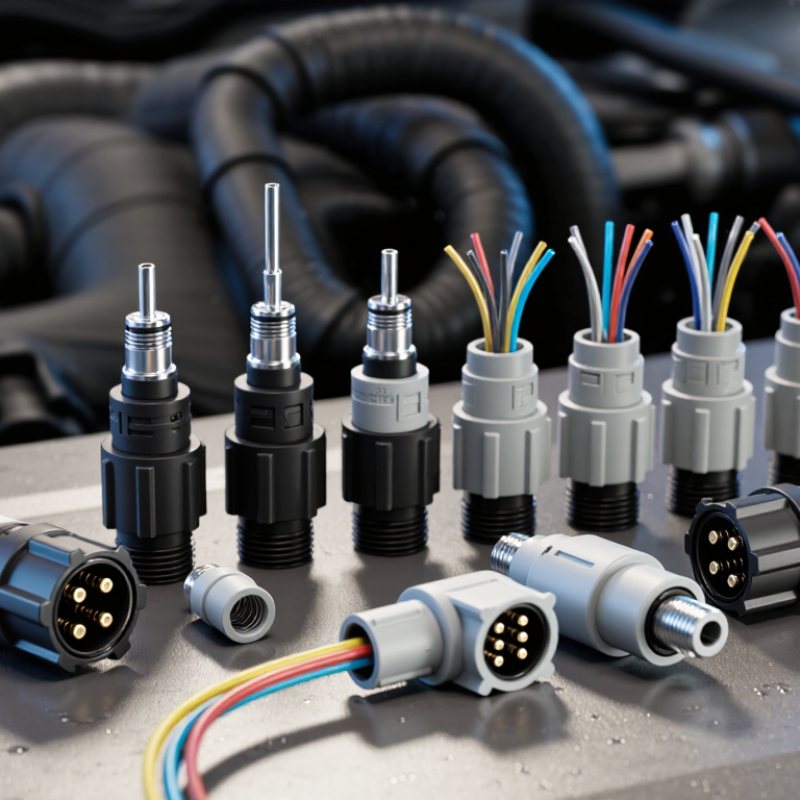

How to Choose the Right Harness Connector
A contact’s current rating is only useful when it matches the wire and operating conditions. Check the connector manufacturer’s data for the exact contact and wire size, not just the connector family. A terminal may accept several wire gauges, but its rated current can change with wire size, insulation temperature, ambient heat, and the number of loaded circuits. Small details matter. For example, a wire routed beside a warm motor may need more margin than one in open air.
Compare the expected current with the manufacturer’s rating for that specific wire gauge. Do not assume a thicker wire automatically makes the contact safe at a higher current; the contact, crimp, and connector body also have limits. Confirm the stated temperature range and any derating guidance. Then select a compatible terminal and crimp tool. A neat-looking crimp can still be loose inside. That is easy to miss.
Tips: Keep the data sheet beside your wire-size chart. Check the actual conductor gauge and insulation type before crimping. Make a sample termination, inspect it, and verify it with the manufacturer’s recommended checks. If the rating or conditions are unclear, pause and confirm the specification rather than guessing.
Wire size is shown as nominal copper cross-sectional area. Area alone does not determine a connector’s allowable current: verify the contact’s wire-size range and current rating in the connector manufacturer’s datasheet, under the stated temperature and operating conditions.
How to Choose the Right Harness Connector
For a harness exposed to standing water, check the exact sealing claim—not just “waterproof.” IEC 60529 defines IPX7 as temporary immersion in water at 1 m for 30 minutes under specified test conditions. The X means dust protection has not been rated. That distinction matters in a vehicle bay where grit can damage a seal before water ever reaches it. Details matter.
An IPX7 result applies to the tested configuration. Confirm whether the test covered the connector when mated, with the specified seals, cable, and backshell. A loose connector or a different wire diameter may create a leak path. Ask for the test report and installation limits, then compare them with your real exposure: repeated splashes, vibration, cleaning, or long immersion. IPX7 alone does not establish resistance to water jets or every field condition. A lab pass is useful, not magic.
Tips: Inspect seal seating and cable strain relief after assembly. Avoid sharp bends near the grommet. If the harness sees spray as well as immersion, ask whether a separate jet-resistance rating is needed. That extra check can feel fussy. It may save a difficult fault hunt later.
Select a connector’s ingress-protection rating for the actual exposure, then verify that the rating applies to the complete connector assembly in its intended condition—such as mated, capped, or connected to the specified wire seals.
| IEC 60529 rating | Water protection indicated | Typical harness application | Selection and verification points |
|---|---|---|---|
| IPX4 | Protection against splashing water from any direction under the specified test. | Locations exposed to occasional splashes, such as sheltered equipment areas. | Not a rating for immersion or high-pressure cleaning. Check whether the connector must be mated or fitted with a cap during exposure. |
| IPX5 | Protection against water jets from a nozzle under the specified test conditions. | Equipment that may encounter wash-down spray or directed water jets. | Does not establish protection against immersion. Confirm the test configuration and any limits on nozzle distance or exposure duration in the product specification. |
| IPX6 | Protection against powerful water jets under the specified test conditions. | Exposed equipment subject to stronger spray or wash-down conditions. | IPX6 is a jet test, not an immersion rating. Do not assume it includes IPX7 protection unless both ratings are declared and verified. |
| IPX7 | Protection against temporary immersion: the standard test uses immersion in water at a depth of 1 m for 30 minutes, subject to the IEC 60529 test conditions. | Harness connectors that may be temporarily submerged, for example during brief flooding or accidental immersion. | Verify that the rating covers the complete connector and the intended mated or capped condition. IPX7 alone does not demonstrate resistance to water jets or prolonged submersion. |
| IPX8 | Protection against continuous immersion under conditions agreed between the manufacturer and user; the conditions are more severe than those for IPX7. | Equipment intended for ongoing or deeper immersion when the required conditions are defined. | There is no single universal depth-and-duration value for IPX8. Specify and confirm the test depth, duration, and assembly configuration for the application. |
| IPX9 | Protection against high-pressure, high-temperature water jets under the specified test conditions. | Equipment exposed to demanding wash-down cleaning, where this rating is required. | IPX9 does not by itself state suitability for immersion. Confirm the applicable rating and test requirements for the intended cleaning process. |
Harness design check: Sealing performance can depend on mating, wire size, seals, unused-cavity plugs, backshells, and installation. Confirm the declared IP rating for the assembled configuration and check that it matches the required exposure.
When choosing a harness connector, look beyond pin count and fit. The housing material matters, especially near a motor, heater, or tightly packed control cabinet. Heat and an electrical fault can turn a small plastic part into a fire concern. Small detail. Big consequence.
UL 94 V-0 is a flammability classification for plastic materials tested under specified conditions. Each test specimen must stop flaming within 10 seconds after each flame application. The test also limits total afterflame time and checks whether flaming particles ignite cotton below the specimen. V-0 does not mean nonflammable. It describes performance in a controlled test, not every real-world fire scenario.
Check that the rating applies to the exact housing material and tested thickness. Pigments, additives, and molding changes can affect performance, so a generic “V-0” statement may not tell the whole story. Ask for documentation identifying the material grade and rating. Then compare the connector’s operating temperature, wire size, and installation location with your application. A rating can be easy to overlook during selection; I would still verify it against the actual part specification.
How to Choose the Right Harness Connector
Validate Keying and Crimp Workmanship Against IPC/WHMA-A-620
Connector selection is not complete when the housing fits. Confirm the keying, cavity layout, and polarization against the mating part and the assembly drawing. A connector that looks correct can still be rotated or misloaded. Check sample assemblies by mating them gently; never force a mismatch. Record the part configuration and inspection results so another technician can repeat the check.
Use the applicable IPC/WHMA-A-620 revision and agreed product class to assess crimp workmanship. Inspect for proper conductor placement, insulation support, and visible damage. Compare strip length and crimp dimensions with the connector manufacturer’s specifications; the standard does not replace process-specific limits. On the bench, a bright light and magnifier can reveal stray strands or uneven insulation position. A visual check helps, but it cannot prove crimp strength. Use suitable pull testing and calibrated tools where the procedure requires them. Even a neat crimp can hide a weak connection, so avoid judging by appearance alone.
Tips: Verify cavity numbers before loading wires. Keep a known-good sample nearby. Pause when a result seems borderline; recheck it against the documented acceptance criteria. Checklists help, but they do not catch everything. That limitation deserves attention.
